SPECIFICATIONS

Certification: None

DIY Supplies: TiLing

Model Number: 1

Tape Type: Filament Tape

Type: Tape

5/10/20/30/50mm100ft Heat Resistant High Temperature Polyimide Tape 33M

Description:

• 100% Brand New and High Quality

• Gold finger tape is made of polyimide film coated with high-temperature resistant silicone. The color is brown (amber). Gold finger tape has good adhesiveness, good applicability, high temperature resistance, resistance, no tin penetration, no Residues, products with excellent electrical properties

• High insulation, high temperature, low temperature, and alkali, low electrolysis, good mechanical properties, abrasion resistance, tear resistance;
  Special adhesive , strong adhesion, off after the masking surface without leaving a residue.

• Mainly used for painting, baking, sealing, footwear, packaging, construction and decoration industries;

• Widely used as high-temperature insulation windings in , motors, coils, capacitors and variable frequency power supplies in the electronics industry;

• Applicable to printed circuit board (PCB), SMT tin furnace, wave shield during protection process gold finger;

• High-grade electrical insulation protection and lithium battery positive and negative fixed role;

• Suitable for welding protection;

• Lithium batteries for mobile phones are bundles.

• Material: Polyimide

• Color: Brown

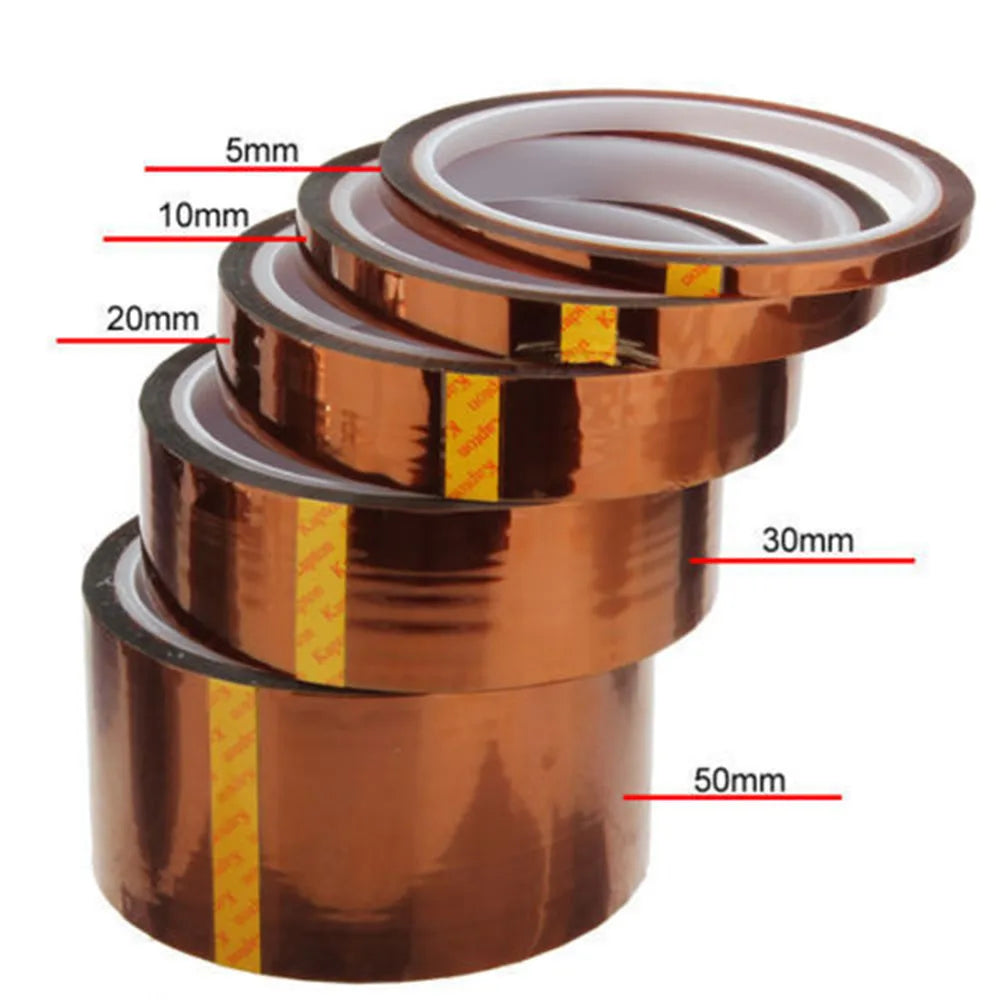

• Width: approx. 5/10/20/30/50mm （According to your purchase selection）

• Length: approx. 33m

• Weight: approx. 12.5g/25g/55g/85g/140g The corresponding size is: 5/10/20/30/50mm

• Size:5/10/20/30/50mm （According to your purchase selection）

• Thickness: 0.055mm

• Elongation: 50%

• Tensile force: ≥42N/25mm

• Peeling force: ≥26N/25mm

• Initial adhesion: 24#

• Sticky force: 48H

• Long-term temperature:200 °C degrees

• Short-term temperature: 220 °C degrees.

Notice:

• Please allow 1-2cm error due to manual measurement.

• Pls make sure you do not mind before you bid.

• The colors may have different as the difference display,pls understand.

• If you have any problems, please contact us before open the dispute or give negative ,we will try our best to help you,thank you!

Quantity:

• 1x Roll of Tape Adhesive High Temperature Heat Resistant Polyimide（5/10/20/30/50mm According to your purchase selection）
